Product no. AA

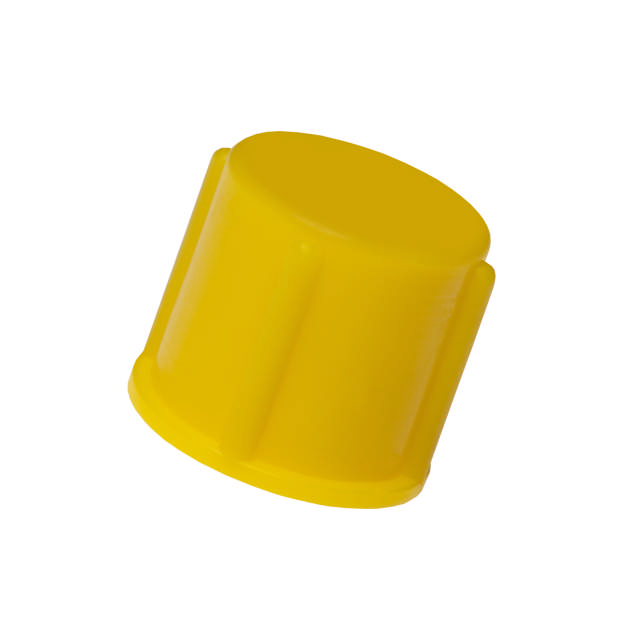

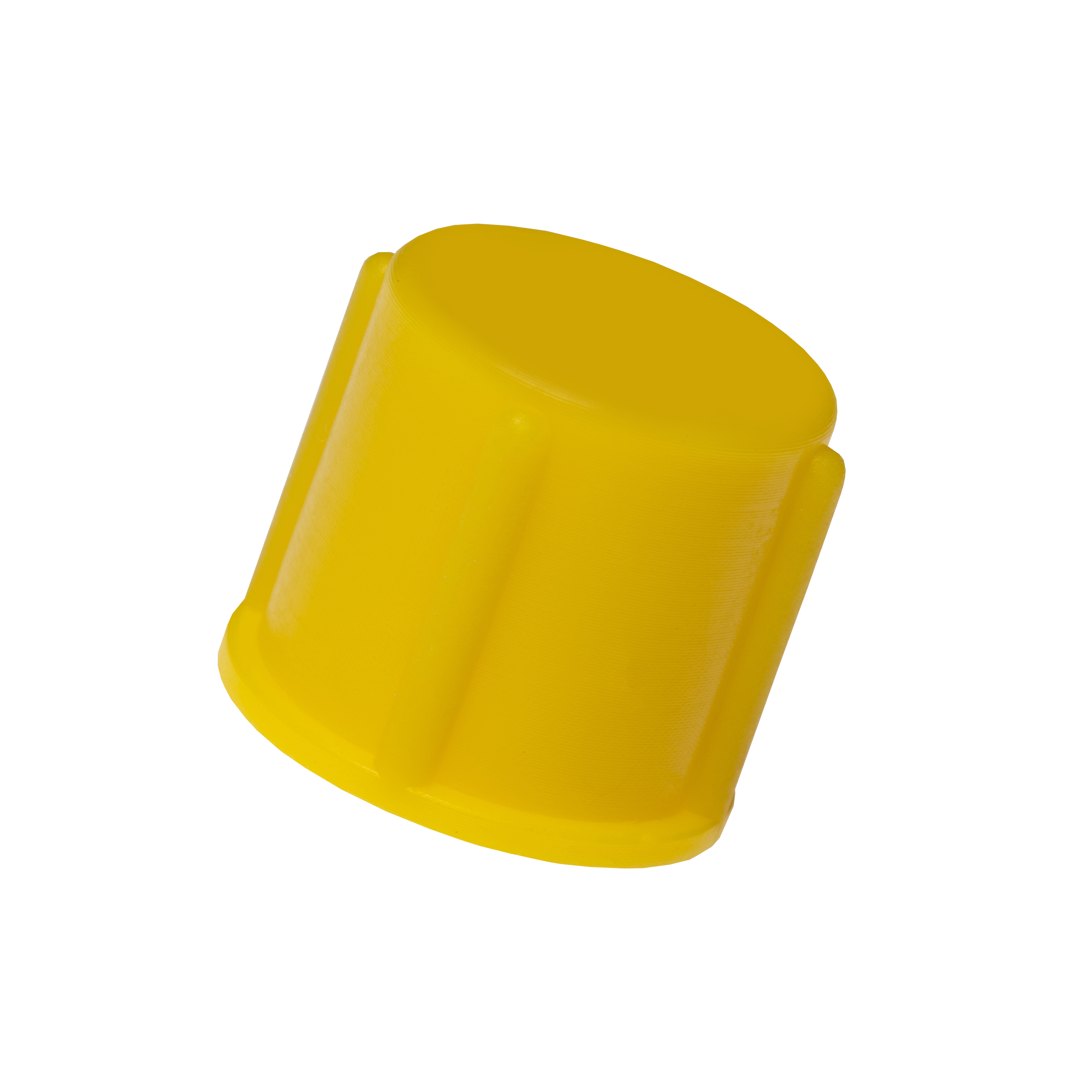

Threaded Caps (AA)

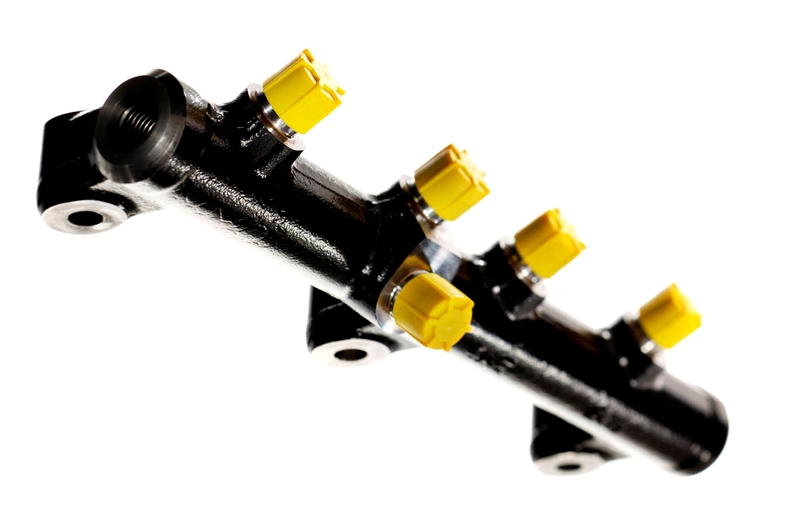

General closure in conical shape for multi-dimensional fit as a cap or plug for internal or external protection. It is therefore ideal for every kind of connection port and inspection holes or fittings in hydraulic applications. Read more

Ideal for these applications:

Battery System Components Brake System Components Exhaust Gas Management Systems Hydraulic Power Systems Pneumatic Power Systems Refrigeration And Air Conditioning (RAC) Hydraulic Components Energy Storage Interfaces

Try before you decide

Request sample

Variants

View products

Out of stock

All benefits

Custom-fit solution

available in soft or hard materials

Leak-free performance

optional sealing ensures a secure closure

Tool-friendly design

easy install/removal with optional washer

Product specifications Applications Value added services

Jump to top

Product specifications

Size unit:

inches

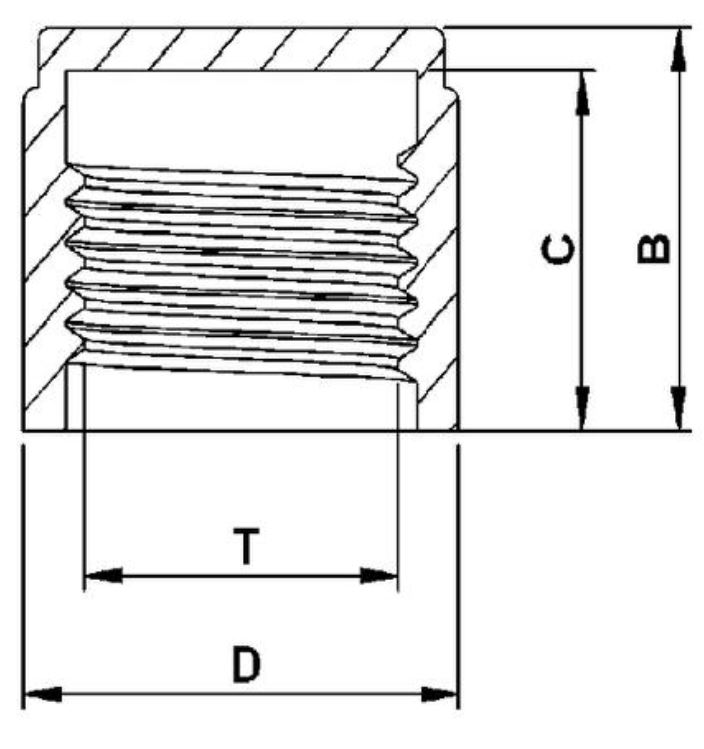

Technical drawing AA range_PDS

			B mm	C mm	D mm	Fits thread
AA1002A-GA10A	Natural	PA66	11	10	14	M10 x 1
AA1201A-BA20A	Yellow	LLDPE	12.1	10.3	16.9	M12 x 1
AA1201A-EA20A	Yellow	HDPE	12	10.3	17	M12 x 1
AA1202A-BA20A	Yellow	LLDPE	12	10	17	M12 x 1.5
AA1202A-EA20A	Yellow	HDPE	11.9	10.1	17	M12 x 1.5
AA1298A-AA20A	Yellow	Recycled LDPE	12.7	14.2	16.4	M12 x 1.5
AA1299A-AA20A	Yellow	Recycled LDPE	14.2	12.7	16.4	M12 x 1
AA1401A-BA20A	Yellow	LLDPE	11.9	10.6	18.8	M14 x 1.5
AA1401A-EA20A	Yellow	HDPE	11.9	10.5	19.1	M14 x 1.5
AA1601A-BA20A	Yellow	LLDPE	13.5	11.8	20.9	M16 x 1.5
AA1601A-EA20A	Yellow	HDPE	13.5	12.4	20.9	M16 x 1.5
AA1602A-BA20A	Yellow	LLDPE	25.9	23.9	20.3	M16 x 1.5
AA1801A-BA20A	Yellow	LLDPE	12.3	10.5	22.2	M18 x 1.5
AA1801A-EA20A	Yellow	HDPE	12.5	10.4	22.4	M18 x 1.5
AA2001A-BA20A	Yellow	LLDPE	15.2	13.6	25.4	M20 x 1.5
AA2001A-EA20A	Yellow	HDPE	15.3	13.9	25.3	M20 x 1.5
AA2201A-BA20A	Yellow	LLDPE	14.7	13.9	27	M22 x 1.5
AA2201A-EA20A	Yellow	HDPE	14.5	13.7	26.8	M22 x 1.5
AA2201D-EA20A	Yellow	HDPE	14.5	13.7	26.8	M22 x 1.5
AA2401A-BA20A	Yellow	LLDPE	13.5	12	29.5	M24 x 1.5
AA2401A-EA20A	Yellow	HDPE	13.5	12	29.5	M24 x 1.5
AA2499A-AA20A	Yellow	Recycled LDPE	15.5	14.2	24.7	M24 x 1.5
AA2699A-AA20A	Yellow	Recycled LDPE	14.5	12.5	33	M26 x 1.5
AA2699A-EA20A	Yellow	HDPE	15.3	13.5	30.8	M26 x 1.5
AA2799A-AA20A	Yellow	Recycled LDPE	15.3	13.5	32	M27 x 2
AA3001A-BA20A	Yellow	LLDPE	14.2	12.5	36	M30 x 2
AA3001A-EA20A	Yellow	HDPE	14.5	12.8	36	M30 x 2
AA3099A-EA20A	Yellow	HDPE	16.3	14.5	35	M30 x 1.5
AA3401A-EA20A	Yellow	HDPE	9.7	8.1	38.9	M34x1,5
AA3602A-EA20A	Yellow	HDPE	17	15.1	41.8	M36 x 2
AA3602E-EA20A	Yellow	HDPE	17	15.1	41.8	M36 x 2
AA3899A-EA20A	Yellow	HDPE	17	15	44	M38 x 1.5
AA4201A-EA20A	Yellow	HDPE	16.3	14.8	49.1	M42 x 2
AA4598A-EA20A	Yellow	HDPE	20.3	18.7	51	M45 x 2
AA5201A-BA20A	Yellow	HDPE	18.5	16.7	59.2	M52 x 2
AA5201A-EA20A	Yellow	HDPE	18.7	16.9	59.3	M52 x 2
