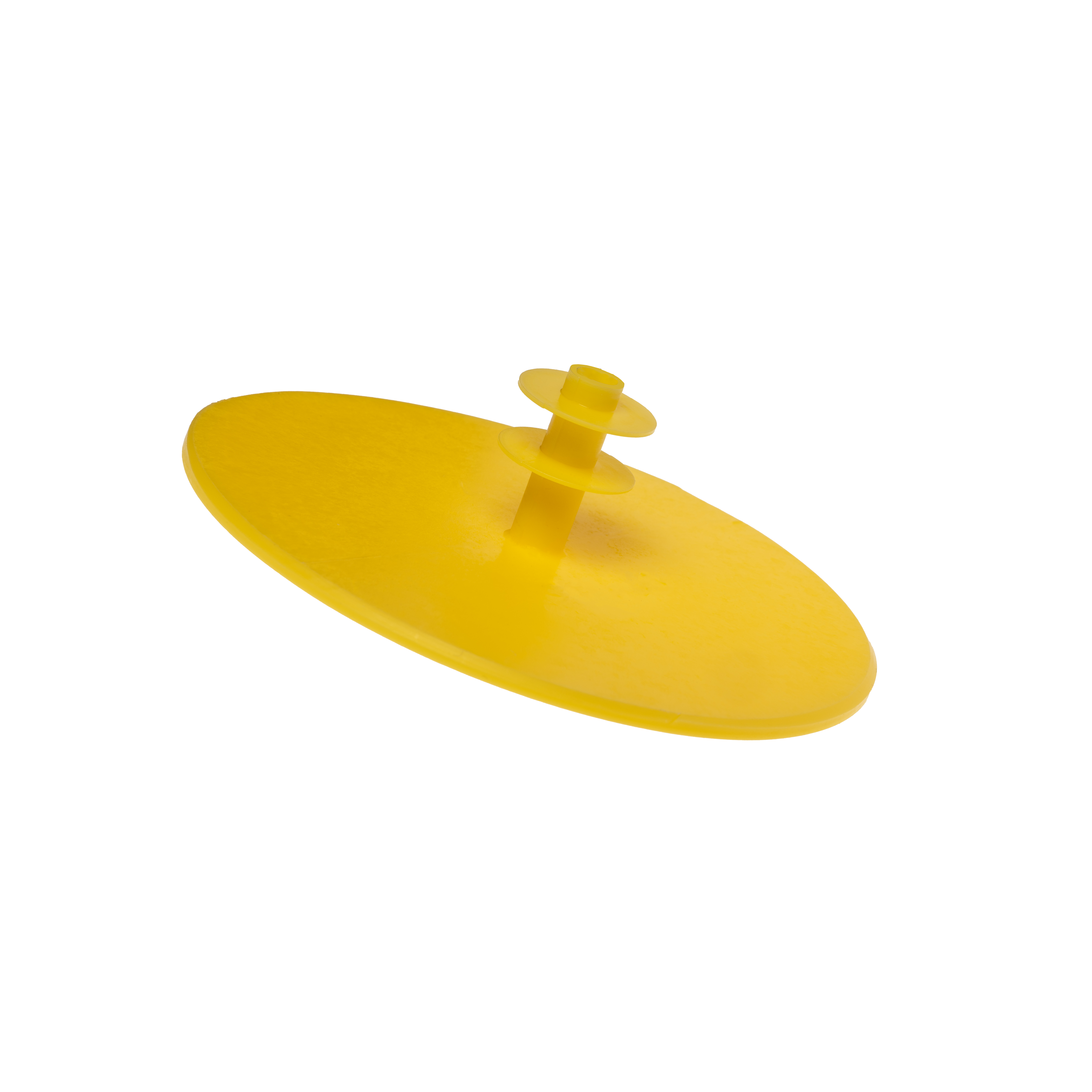

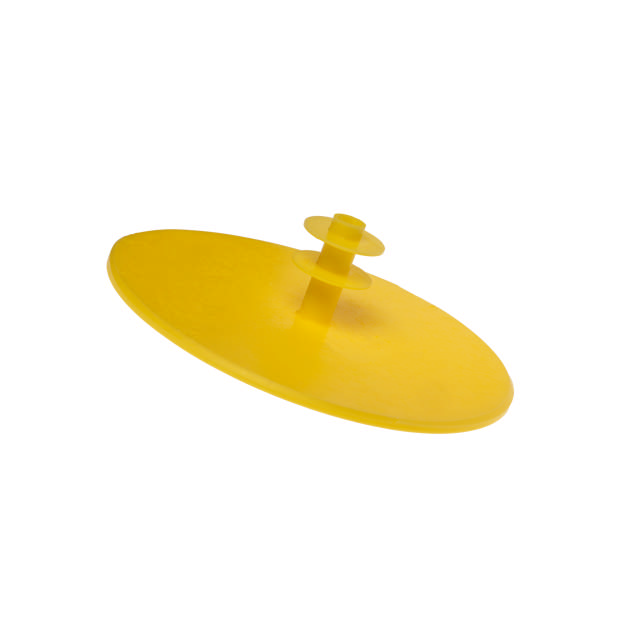

EC Protectors (EC)

Simple, effective flange protection. EC Flange Protectors shield flanges and open surfaces from dirt, moisture, paint, sand, and shot blasting. They provide reliable coverage during manufacturing, transport, and storage, preserving surface integrity in demanding industrial environments.

Ideal for these applications:

Brake System Components Exhaust Gas Management Systems Hydraulic Power Systems Pneumatic Power Systems Powertrain & Driveline Components Hydraulic Components

Try before you decide

Request sample

Variants

View products

Out of stock

All benefits

Protects flange faces

from dirt, moisture, and abrasion

Quick application

designed for fast, secure fitting

Saves time

reduces need for post-process cleaning

Product specifications Applications Value added services

Jump to top

Product specifications

Size unit:

inches

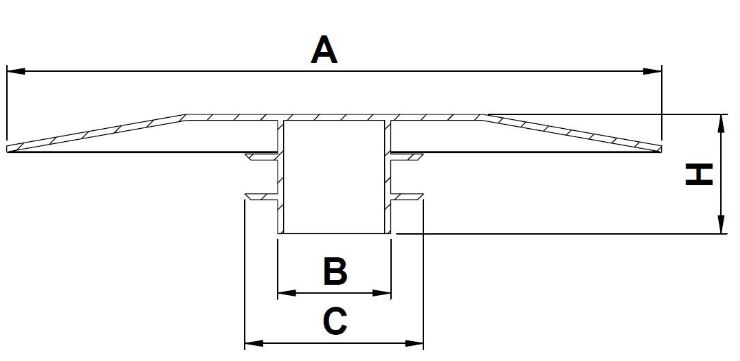

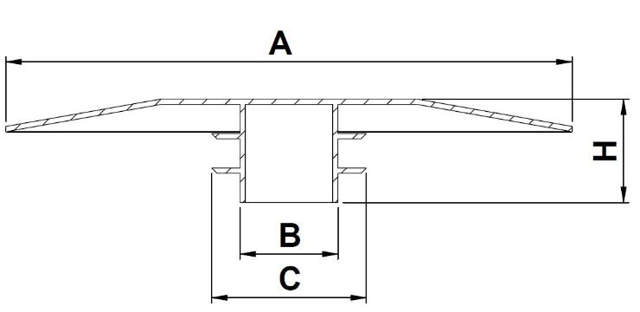

Technical drawing EC range_PDS

			A mm	B mm	C mm	H mm
EC015AZ-AA20B	Yellow	Recycled LDPE	90	10	19	15
EC025AZ-AA20B	Yellow	Recycled LDPE	110	19	30	20
EC032AZ-AA20B	Yellow	Recycled LDPE	136	25	39	20
EC035CZ-AA20B	Yellow	Recycled LDPE	80	20	35	20
EC040AZ-AA20B	Yellow	Recycled LDPE	146	30	45	20
EC045AZ-AA20B	Yellow	Recycled LDPE	90	28	45	26
EC050AZ-AA20B	Yellow	Recycled LDPE	160	40	56	20
EC055BZ-AA20B	Yellow	Recycled LDPE	105	38	55	26
EC065AZ-AA20B	Yellow	Recycled LDPE	180	53	72	20
EC080AZ-AA20B	Yellow	Recycled LDPE	196	65	85	25
EC100AZ-AA20B	Yellow	Recycled LDPE	216	87	109	25
EC125AZ-AA20B	Yellow	Recycled LDPE	246	106	134	25
EC150AZ-AA20B	Yellow	Recycled LDPE	280	135	161	35
EC200AZ-AA20B	Yellow	Recycled LDPE	336	185	210	35
EC250AZ-AA20B	Yellow	Recycled LDPE	390	238	262	40
